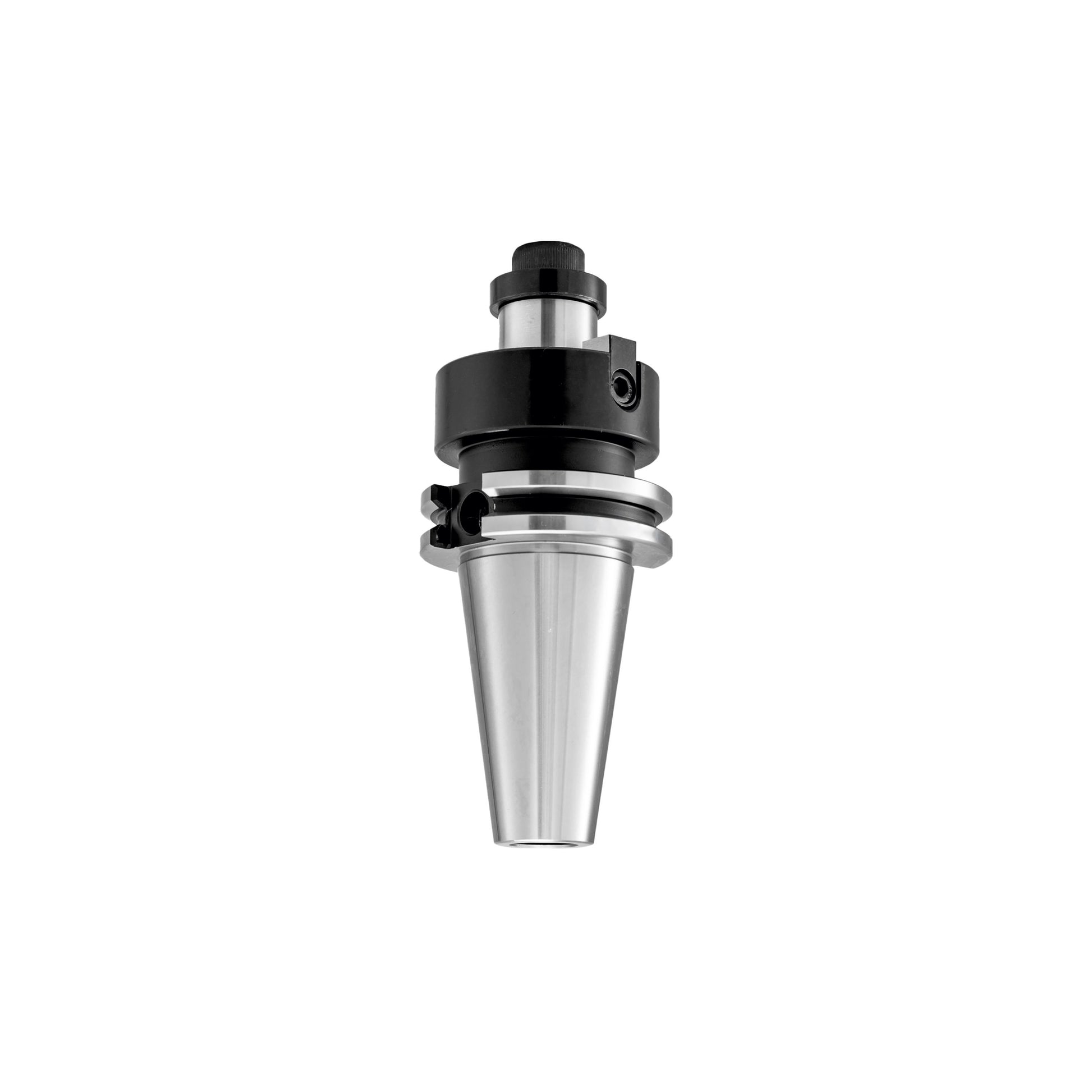

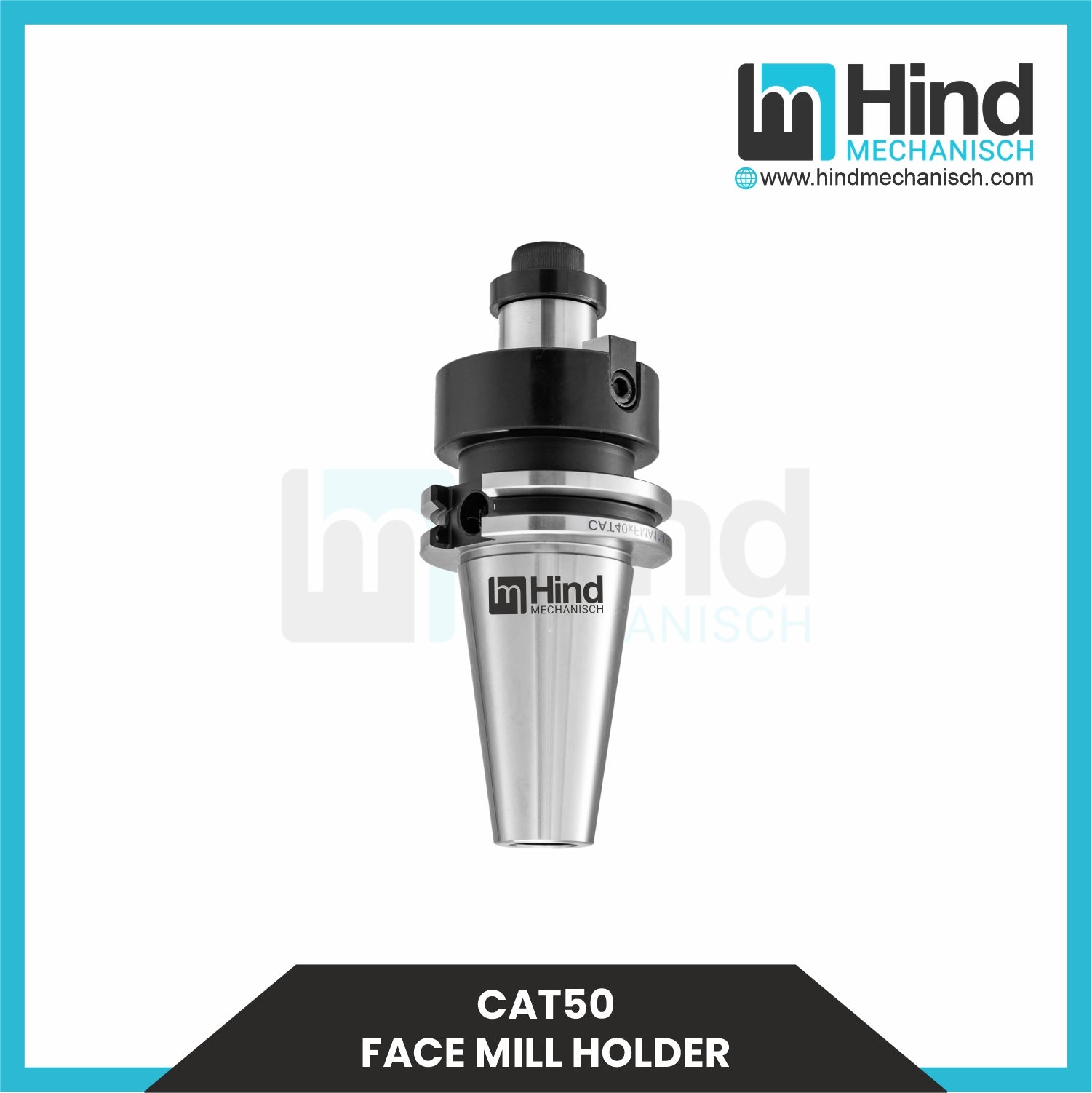

CAT50 Face Mill Tool Holder

The CAT50 Face Mill Holder is a high-precision tool holder designed for use in CNC machining centers, providing secure and stable tool retention during face milling operations. Featuring the CAT50 taper, this face mill holder ensures a reliable connection between the spindle and the tool, while minimizing runout and enhancing cutting accuracy. Perfect for high-performance milling, the CAT50 Face Mill Holder is engineered for demanding applications, offering exceptional rigidity and a secure fit for face mills and other cutting tools.

Key Features:

• Taper Type: CAT50, conforming to ISO 7388-1 standards, ensuring a precise and stable connection between the tool holder and machine spindle.
• Face Mill Application: Designed specifically for secure clamping of face mills and similar cutting tools, offering high material removal rates and excellent surface finishes.
• High Precision: Designed for minimal tool runout, ensuring tight tolerances and consistent cutting performance.
• Clamping Mechanism: Strong and secure clamping system that minimizes tool deflection and vibration, providing enhanced machining accuracy and stability.
• Quick Tool Change: Enables fast tool changes to reduce downtime and improve productivity.
• Material: Constructed from high-quality tool steel, ensuring long-lasting durability, wear resistance, and rigidity under demanding machining conditions.

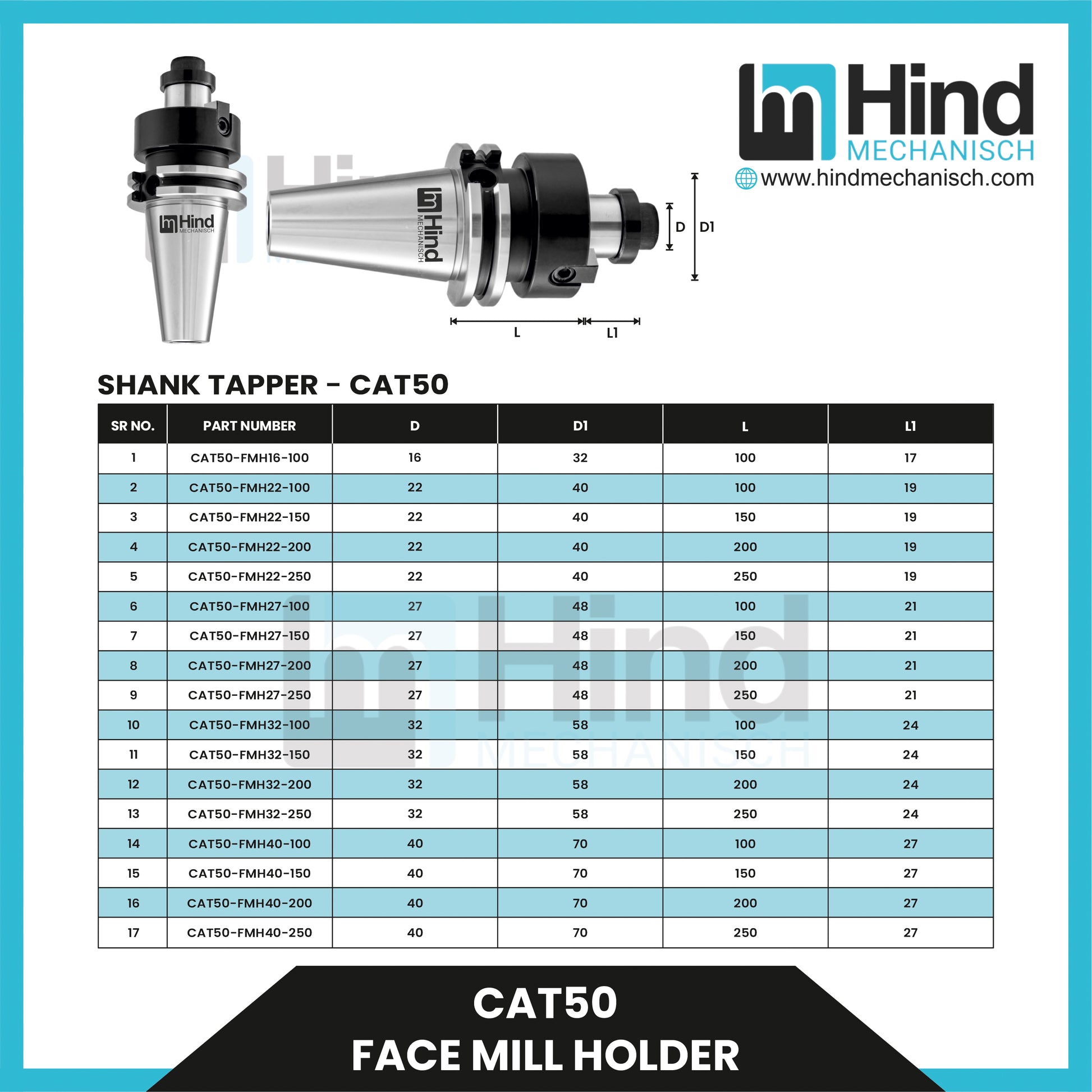

Technical Specifications:

• Shank Diameter: 50mm (CAT50 standard)
• Face Mill Size: Compatible with various face mills and cutting tools with different diameters (depending on specific requirements).
• Clamping Force: High clamping force to securely retain cutting tools, reducing deflection and maintaining cutting accuracy.
• Material: Manufactured from high-quality tool steel, providing durability and resistance to wear.
• Length Options: Available in different lengths to fit specific CNC machine setups and machining needs.

Applications:

The CAT50 Face Mill Holder is ideal for a wide range of precision milling applications, including:

• Face milling operations
• Slotting and profiling
• Heavy-duty cutting and roughing
• High-speed machining
• Suitable for use in CNC machining centers, milling machines, and other high-performance machining equipment.

Advantages:

• High Precision: Designed for minimal tool runout, ensuring tight tolerances and superior surface finishes in face milling applications.
• Smooth Operation: Balanced to G2.5 for vibration-free operation at high speeds, enhancing stability and cutting performance.
• Versatile Tool Holding: Suitable for various face mills and cutting tools, providing flexibility for different milling operations.
• Quick Tool Change: Facilitates rapid tool changes to reduce machine downtime and improve overall machining productivity.

• Durability: Made from high-quality tool steel for exceptional durability, strength, and resistance to wear, ensuring long-term reliability.
