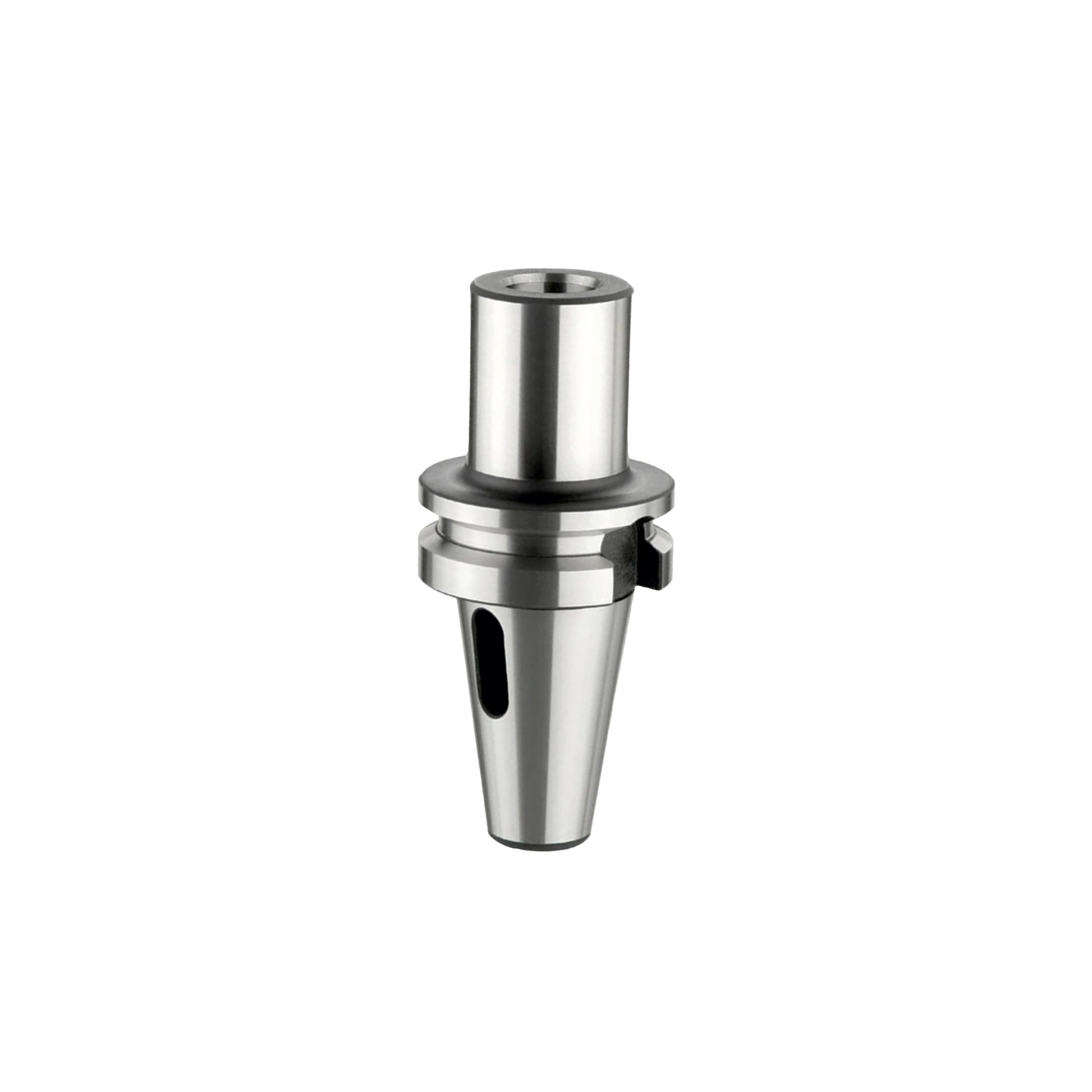

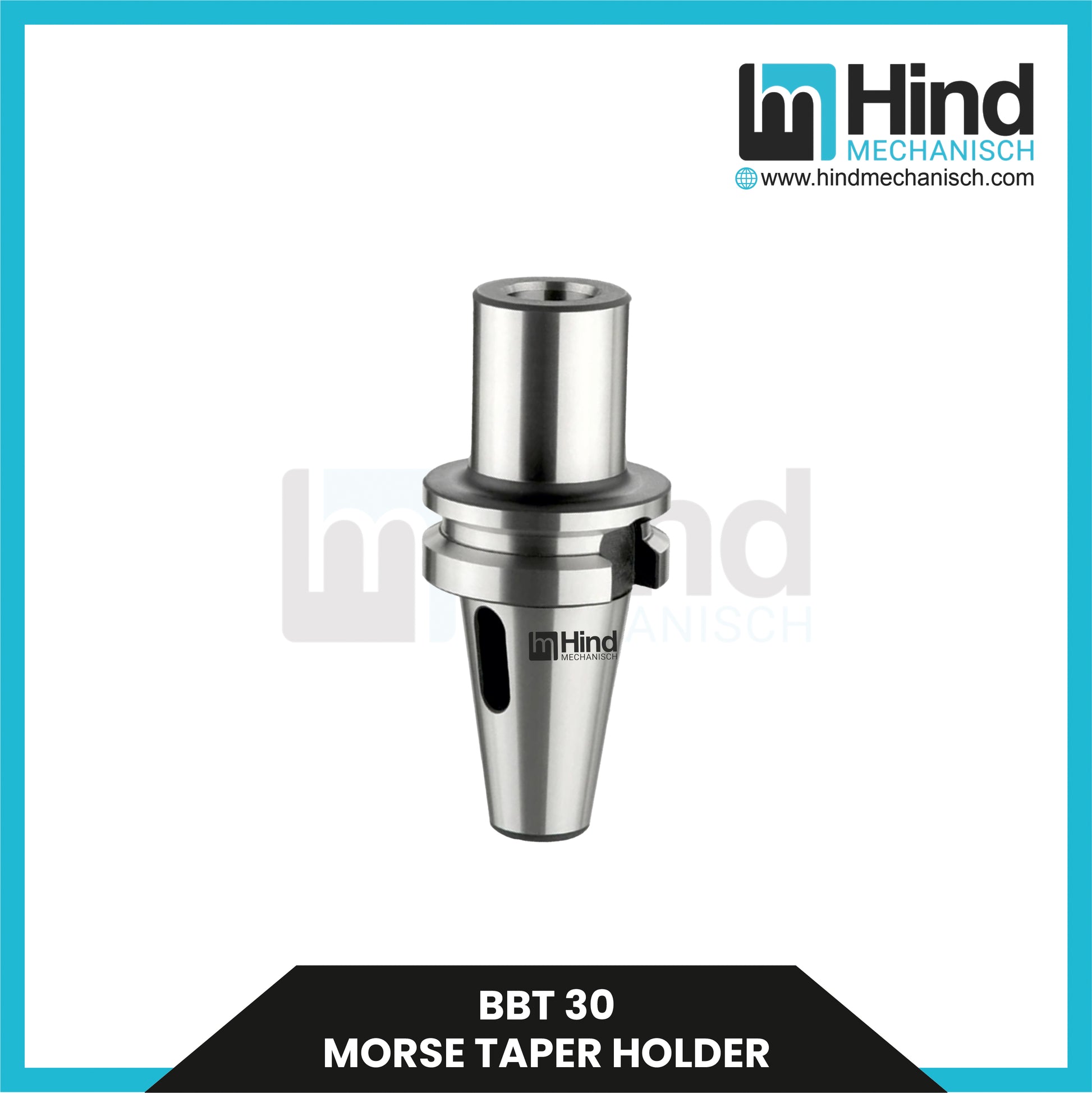

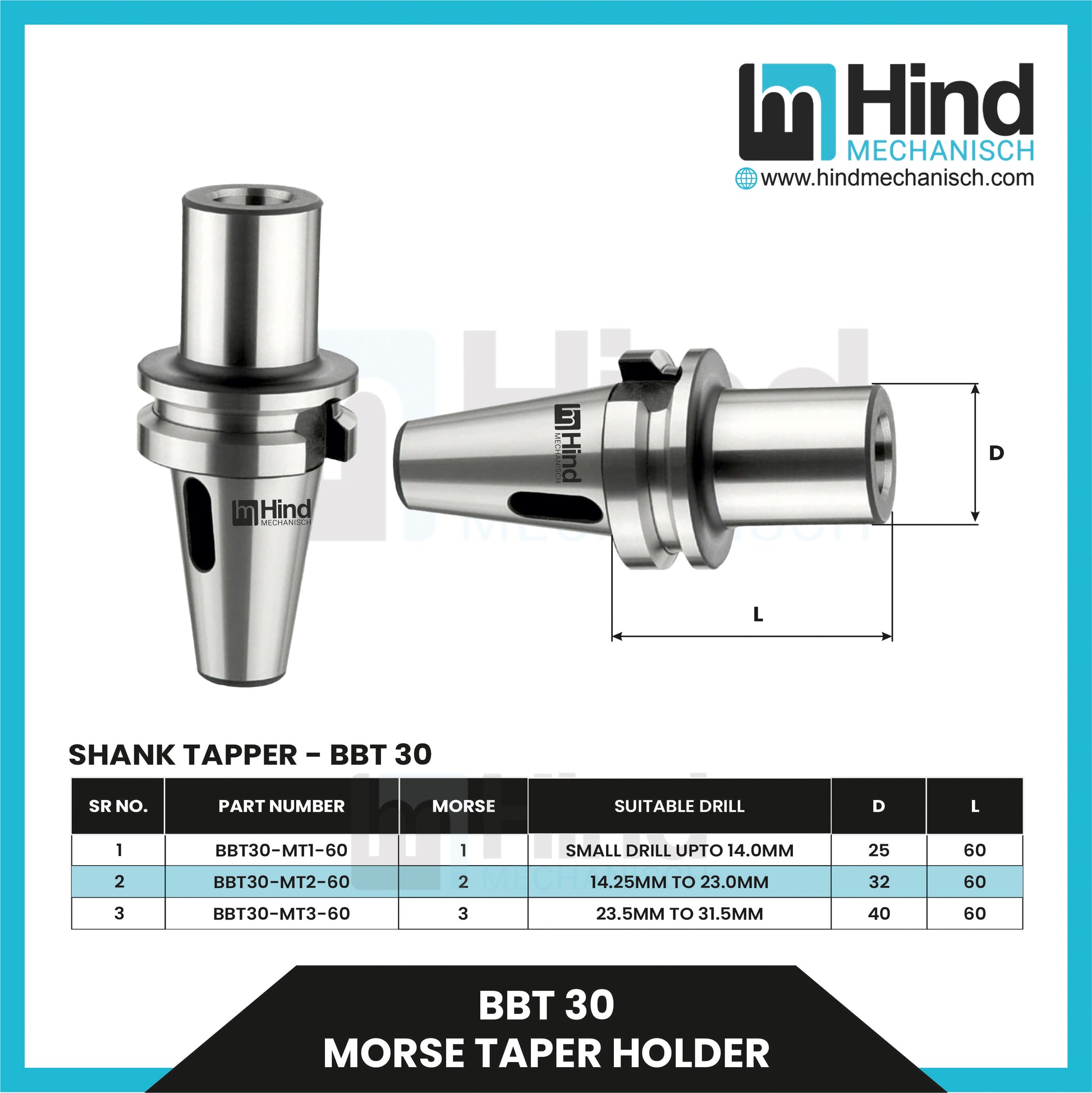

BBT30 Morse Taper Tool Holder

A BBT30 MT holder is a precision tool holder designed to adapt MT shank tools for use in machines with BBT30 spindle tapers. It provides a secure and accurate connection between the MT shank tool and the BBT30 spindle, allowing for a wider range of tooling options.

Key Features:

• BBT30 Shank: Ensures precise alignment and rigidity in the BBT30 spindle.
• MT Taper: Accommodates MT shank tools of various sizes.
• Locking Mechanism: A secure mechanism to hold the MT shank tool in place.
• Coolant Through Hole (optional): Many BBT30 MT holders have a coolant through hole to provide internal coolant delivery to the cutting tool.
• Balancing: High-quality holders are balanced to minimize vibrations and ensure smooth operation at high speeds.

Applications of BBT30 MT Holders:

• Expanding the Tooling Options: Allows the use of MT shank tools in machines with BBT30 spindles, providing greater flexibility.
• Adapting Legacy Tools: Can be used to adapt older MT shank tools for use in modern machines with BBT30 spindles.
• Cost-Effective Solution: Can be a more cost-effective option compared to purchasing new BBT30 shank tools.
